Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation

Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation

Fast-Curing Epoxy Resin

1000 - 2500mPa.s Viscosity Casting Epoxy Resin

1.16 - 1.20g/cm3 Density APG Epoxy Resin

สถานที่กำเนิด:

จีน

ชื่อแบรนด์:

wenyou

ได้รับการรับรอง:

ISO9001, ISO14001, SGS, and UL

หมายเลขรุ่น:

8517

ติดต่อเรา
ขอใบเสนอราคา
รายละเอียดสินค้า
การจำแนกประเภท:
กาวสององค์ประกอบ
การใช้งาน:
ฉนวน หม้อแปลง และผลิตภัณฑ์ฉนวนอื่นๆ
แอปพลิเคชัน:
ฉนวนไฟฟ้ากลางแจ้งสำหรับงานไฟฟ้าแรงปานกลางและแรงสูง
ลักษณะของอีพอกซีเรซิน:
ของเหลวหนืดใสสีเหลืองอ่อน
ความหนืดที่ 25°C:
1,000 - 2500mpa.s
ความหนาแน่นที่ 25°C:
1.16 - 1.20ก./ซม.3
ความดันไอที่ 25°C:
<0.01pa
จุดวาบไฟ:
ประมาณ 135°C
คำอธิบาย:
ธ อร์เอปอ็กซี่แบบโยงยืดหยุ่นสําหรับการบรรจุโค้ลทรานฟอร์เมอร์ - ปรับตัวให้กับสภาพที่แตกต่างกัน
ค่าอีพ็อกซี่:
4.5 - 5.0Eq/kg
เงื่อนไขการชำระเงินและการจัดส่ง
จำนวนสั่งซื้อขั้นต่ำ
20กก./ถังเป็นตัวอย่าง
ราคา
โปร่ง

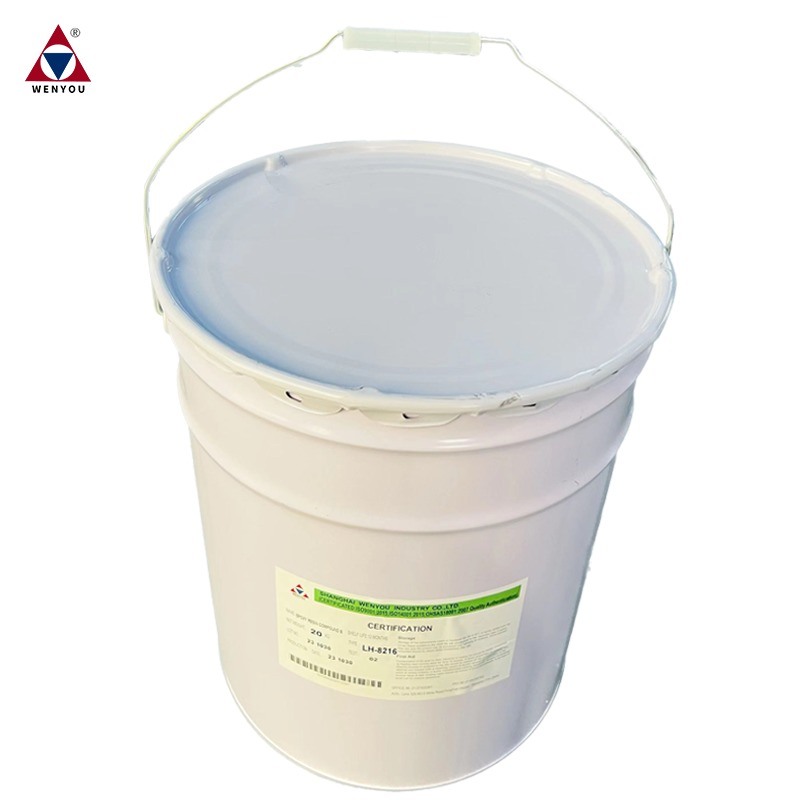

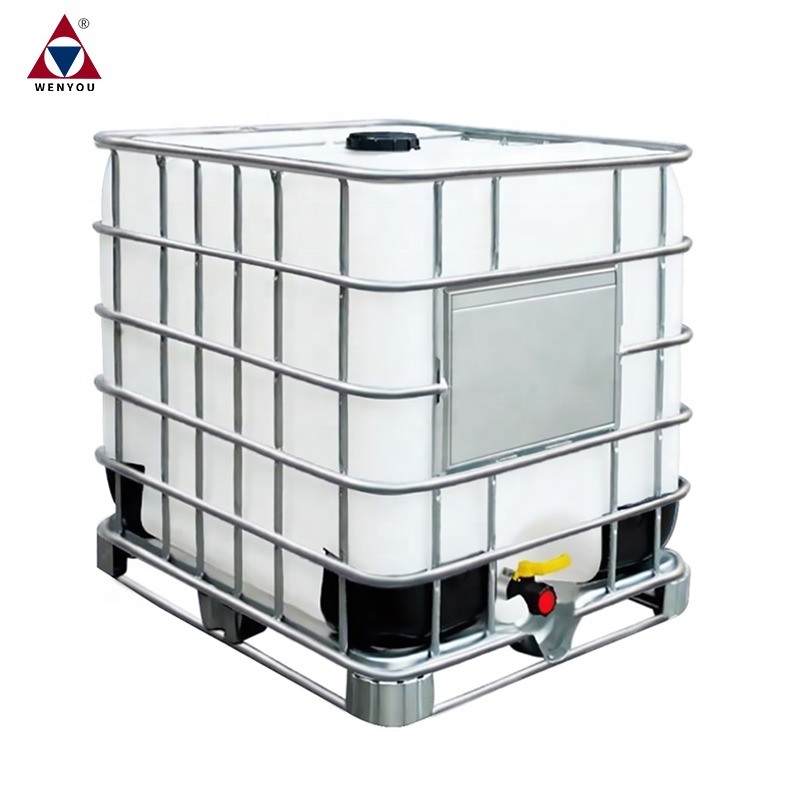

รายละเอียดการบรรจุ
20กก./ถัง, 220กก./บาร์เรล, 1200กก./ถัง
เวลาการส่งมอบ
7 -10 วันทำการ
เงื่อนไขการชำระเงิน
ปกติ T/T, L/C
สามารถในการผลิต
มีวัตถุดิบในสต็อกมากมาย
รายละเอียดสินค้า
Fast-Curing APG Epoxy Resin | Flame Retardant for Electrical Parts
Flexible Casting Epoxy Resin for Transformer Coil Encapsulation
Our flexible casting epoxy resin is specifically engineered for transformer coil encapsulation, designed to withstand various mechanical and thermal stresses during operation while maintaining excellent electrical insulation properties.
Key Benefits
  • Adapts to thermal expansion and contraction without cracking or delamination
  • Absorbs mechanical vibrations to protect transformer coils
  • Maintains excellent electrical insulation properties
  • Provides optimal balance between flexibility and structural strength
  • Ensures long-term integrity of transformer encapsulation
Product Introduction
LE-8517 is a modified saturated cyclic aliphatic epoxy resin system, combined with LH-8517, a modified weather-resistant anhydride hardener. This fast-curing epoxy is ideal for electronic insulators and suitable for vacuum casting.

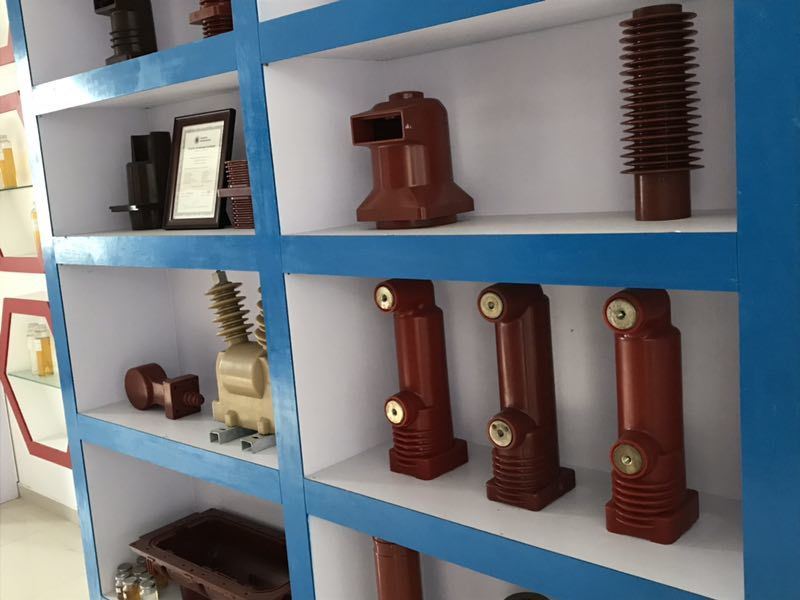

Applications
Designed for outdoor use in medium and high voltage electrical components including:
  • Electrical insulators
  • Transformers
  • Various insulation components
Processing Methods
Available processing options include:
  • Conventional gravity casting method under vacuum
  • Automatic Pressure Gelation (APG) process
Production methods can be customized to accommodate existing manufacturing techniques.
Material Properties
This two-component system features:
  • Saturated cyclic epoxy resin without pre-mixed fillers
  • Remains liquid at room temperature
  • Excellent UV resistance
  • Outstanding thermal shock resistance
  • Superior environmental stability
  • Exceptional mechanical and dielectric properties
Formulation
Component Material Quantity
Epoxy resin LE-8517 100 pbw
Hardener LH-8517 100 pbw
Filler Silica powder 300-360 pbw
Color paste LC series 3 pbw
Product Images
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 0
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 1
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 2
Fast-Curing APG Epoxy Resin with 1000 - 2500mPa.s Viscosity and 1.16 - 1.20g/cm3 Density for Outdoor Electrical Insulation 3
